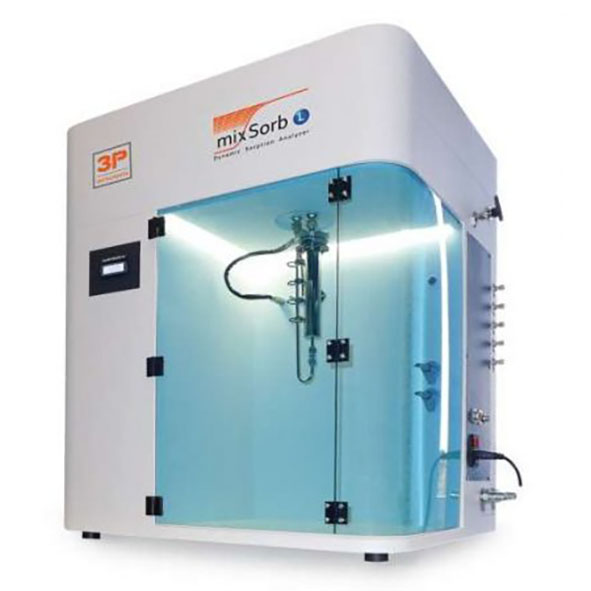

mixSorb L (formerly dynaSorb BT) – breakthrough curve analysis
The mixSorb L series provides unique capabilities to investigate arbitrarily complex dynamic sorption processes in a uniquely safe and easy-to-use bench-top instrument. Technical adsorbents such as zeolites, active carbons, silica gels, etc. can be investigated under authentic process conditions at a broad temperature (-20 °C to 400 °C) and pressure (up to 85 bar) range, with adjustable gas flow rates up to 40 L/min and well-defined gas compositions.
The mixSorb S series provides unique capabilities to investigate novel materials, like MOFs COFs etc. by mixed gas adsorption, especially for R&D.
Specifications/Features/Benefits
- Determination of breakthrough curves
- Investigation of kinetic performance of adsorbents
- Investigation of co-adsorption and displacement
- Determination of sorption selectivity
- Reasonable downscaling of technical separation
- Dynamic adsorption and desorption experiments
- Determination of single- and multi-component adsorption data
- In-situ sample preparation up to 400 °C
- Fully automated control via PC
- Automated regulation of the adsorber pressure up to 10 bar
- Up to 4 high precision mass flow controllers
- Automated built-in gas mixing
- Measurement of inlet and outlet gas composition
- Pre-tempering of inlet gas and tempering of adsorber
- Monitoring of inlet gas temperature
- Determination of heat profiles in the adsorber with four temperature sensors
- Monitoring of pressure drop along the adsorber
- Built-in Thermo Conductivity Detector (TCD) Optional gas analysis via interfaced Mass Spectrometer
- Safety guard sensor for flammable gases for automatic shut down
- Enhanced Safety by intelligent illuminated workspace
An overview of the models of the mixSorb L series can be found below:
| Model | L | L eco | L ambient | LHP |
| Pressure range | 0.1 – 10 bar | 0.1 – 10 bar | 0.1 bar – ambient | 0.1 – 68 bar |
| No. of MFCs | 2 – 4 | |||
| Required inlet pressure | 15 | 15 | 15 | 85 |
| No. of Evaporators | Up to 2 | |||
| Pressure control | Yes | Yes | No | Yes |
| Simulation Software | Incl. | Optional | Incl. | Incl. |
| Gas sensor | Yes | No | Yes | Yes |
| Counterflow possible | Yes | No | Yes | Yes |
| TCD | Incl. 13 factory calibrations | Incl. 1 factory calibration | Incl. 13 factory calibrations | Incl. 13 factory calibrations |
Sample bed temperature sensors | Up to 4 | |||
| Sample loading | 4 – 130 cm³, customized adsorbers on requests | |||
| Temperature range heating mantle | Ambient – 400 °C | |||
| Temperature range circulator bath | -20 °C – 90 °C | |||
