Bettersize Instruments

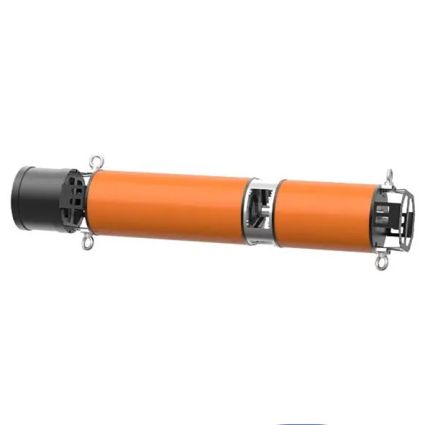

DeepSizer 300

Submersible Particle Size Analyser

Measures particle sizes from 0.1 to 2000µm
Measures concentrations from 0.001 to 100 g/L
Real-time sediment monitoring in rivers, lakes, estuaries, and coastal waters

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

YOUR ESSENTIAL TOOL FOR SEDIMENT INSIGHT

The DeepSizer 300 is a submersible particle size analyzer for real-time sediment monitoring in rivers, lakes, estuaries, and coastal waters. It measures concentrations from 0.001 to 100 g/L and particle sizes from 0.1 to 2000 μm with high accuracy.

Powered by six core technologies—including two patented innovations, Differential Path and Adaptive Path Technologies—it adapts to diverse conditions and remains reliable even in extreme environments.

DeepSizer 300 overcomes the risks, delays, inaccuracies, and maintenance burdens of traditional sediment analysis. It delivers trusted insights for sediment studies, ecological monitoring, water-quality assessment, and hydraulic engineering— supporting resilient, sustainable water systems.

Safer In-situ
Measurement

Challenge: Traditional sampling is labor-intensive, time-consuming, and exposes personnel to potential health and safety risks.

Solution: DeepSizer 300 enables direct in-situ measurement, cutting sampling risks and providing reliable, continuous data for ecosystems, pollutant tracking, and water safety.

Real-time Sediment Monitoring

Challenge: Conventional methods are too slow to track short-lived spikes in sediment concentration during floods and typhoons.

Solution: DeepSizer 300 provides real-time measurements of concentration and PSD, capturing critical flood events to support early warning and protect communities.

Accurate Results in High Turbidity

Challenge: Common optical and acoustic methods lose accuracy in highly turbid waters, limiting their reliability for sediment management.

Solution: DeepSizer 300 combines adaptive sediment concentration measurement with advanced multiplescattering correction, ensuring accurate results even under extreme sediment loads.

Reliable Long-term Field Deployment

Challenge: Extended field campaigns often suffer from window fouling, biofilm growth, and sediment deposits, leading to poor data quality and high maintenance costs.

Solution: DeepSizer 300 features automatic window cleaning and intelligent background correction, enabling long-term unattended operation with high-quality data.

Key Features

Measures a broad concentration from 0.001 to 100 g/L and particle sizes from 0.1 to 2000 µm, delivering high-precision data across diverse water bodies.
Measures additional parameters: depth, temperature, and conductivity.
80-detector array: detects light signals from 0.0163° to 42°.
Patented core technologies: incorporate Differential Path Technology and Adaptive Path Technology, ensuring measurement accuracy and superior environmental adaptability.
Automatic optical window cleaning system: removes deposits and contaminants from optical windows, keeping the instrument in optimal condition.
Offers three transmission modes—wired, wireless, and offline—to adapt to diverse monitoring scenarios.

Technical Specs

Parameters Measured	Particle size distribution, total mass concentration, depth, temperature, conductivity
Concentration range	0.001 – 100 g/L ( kg/m³))
Particle size analysis range	0.1 – 2000 μm *
Particle size accuracy	≤ 2% *
Particle size repeatability	≤ 2% *
Depth sensor	0 – 200 m
Temperature sensor	-20 – 85°C
Laser source	10 mW, 635 nm
Detector	80 detectors
Measuring angle range	0.0163 – 42°
Optical path length range	0.5 – 40 mm
Depth rating	200 m
Protection level	IP 68
Automatic optical window cleaning	Available, programmable cleaning
Transmission modes	Wired / Wireless (4G) / Offline
Battery runtime	24 hours
Memory capacity	16 GB
Operating temperature	0 – 55°C
Instrument dimensions (L x W x H)	970 x 189 x 189 mm
Weight	20 kg
Computer interface	At least one high-speed USB 2.0 or USB 3.0 port required
Operating system	Windows 10 or above
Hardware specification	Intel Core i5 Processor, 8GB RAM, 512 GB SSD, 1920 x 1080 (Full HD)

*Sample dependent

Applications
