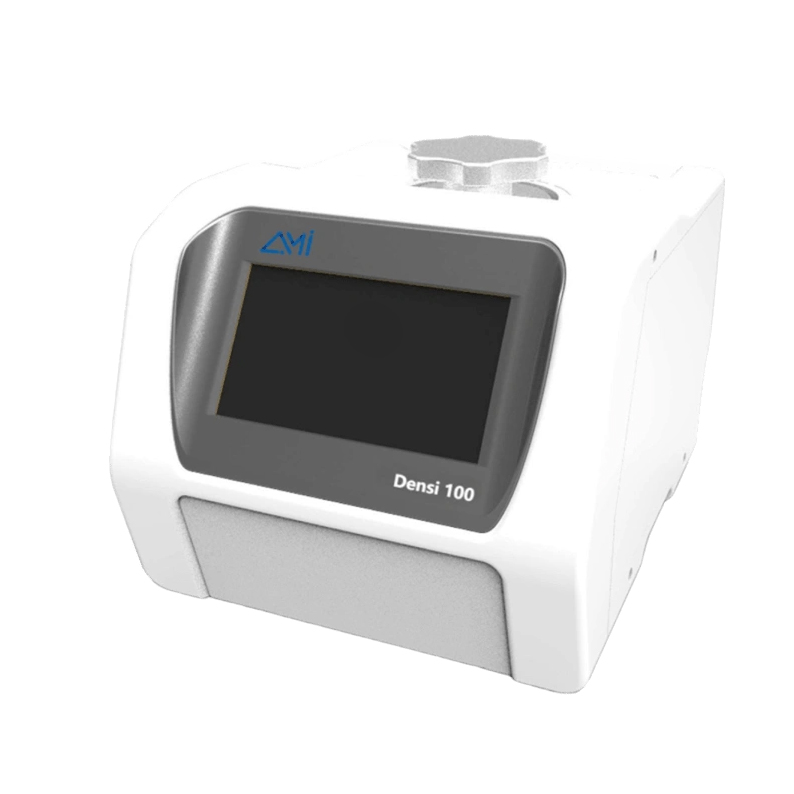

AMI
Densi 100
True Density Analyser
- Automated gas pycnometry for precise material characterization.
- Rapid true density measurement ensuring accurate and consistent results.
- Compact design, easy operation for efficient daily laboratory use.
Key Features
Integrated Testing Module
The Densi 100 combines the sample chamber,expansion chamber,pressuresensor,and control valve into a single,compact unit,ensuring uniform system temperature and enhanced measurement stability.This integrated design delivers exceptional performance,achieving true density accuracy of up to ±0.03% and repeatability better than±0.02%,makingit ideal for both high-precision research and routine quality control applications.
Reference Material
The standard reference material used for calibration is made from nonexpanded alloy and is certified by the National Institute of Metrology, China. This ensures traceability and high confidence in measurement accuracy, with volume precision up to 10⁻⁴ cc.
Multiple Sample Chambers and Inserts
Various chamber and sample cell inserts are available, allowing users to optimize measurement accuracy and accommodate different sample volumes with precision and flexibility.
Density Measurement
The Densi 100 Automatic True Density Analyzer accurately measures the true density of powders within a pressure range of 1 to 1.3 bar.
Unique Design
The Densi 100 is equipped with a built-in processor and Windows-based operating system, enabling fully independent operation without requiring an external computer. Its intelligent self-diagnostic program automatically performs seal integrity verification, reducing operator errors and ensuring consistent, highquality test results.
Pressure Sensor
The Densi 100, equipped with a 2 bar (F.S.) pressure sensor, delivers highly stable and accurate true density measurements. The sensor’s nonlinearity is better than ±0.2%, ensuring precise pressure readings and reliable data capture throughout the testing process.
Software
The Densi 100 offers an intuitive, fully automated testing process, completing measurements in approximately three minutes. Users can customize the number of repeat tests, while all test data is automatically recorded, saved in TXT format, and easily exported via USB.
The system includes PC compatible software for generating and printing comprehensive standard test reports, ensuring seamless data management and documentation.
To enhance versatility, the software features five built-in test modes—Pellets, Powder, Fine Powder, Foam, and Custom—allowing for quick selection based on sample type.
Applications
Ceramic Fracturing
Specifications
| pecification | Details |
|---|---|
| Model | Densi 100 |
| Principle | Gas displacement method |
| Pre-Treatment | Gas purge, Flow |
| Pressure | 0–150 kPa (Gauge) |
| Accuracy | 0.03% |
| Repeatability | 0.02% |
| Cell Volume | Nominal: 100 ml or 10 ml Available inserts: 35 ml, 10 ml, 3.5 ml, 1 ml |
| Calibration Method | Automatic calibration |
| Gases | Helium or Nitrogen |
| Testing Range | 0.0001 g/cm³ to infinity |
| Dimensions and Weight | L 15.0 in (380 mm) × W 11.0 in (280 mm) × H 11.0 in (280 mm) 22 lbs. (10 kg) |
| Power Requirement | 110 or 240 VAC, 50/60 Hz |
