Orflo
Moxi Z

Mini Automated Cell Counter Kit

  • Produce repeatable cell counts with >95% accuracy in just 8 seconds
  • Improve downstream results with better quality control
  • Offers Precise Cell Counting
  • Assess cell culture health without reagents or dyes
  • Measure the smallest cells at very high concentrations

Download
brochure
   Request
quote

Beckman Coulter LS 13 320 XR Laser Diffraction Particle Size Analyser 21 CFR Part 11

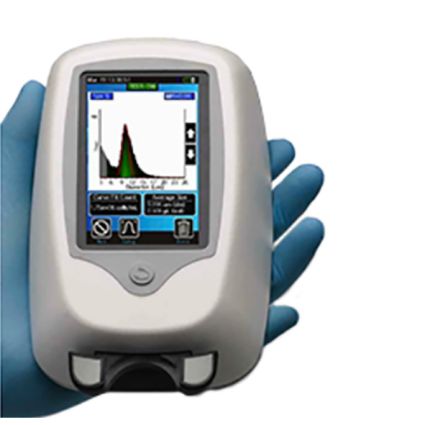

MOXI Z Mini Automated Cell Counter Kit – Coulter Principle Counts and Sizing.

The Orflo Moxi Z offers precise cell counting through its advanced Coulter Principle technology and fluorescence-based viability analysis. Its user-friendly interface ensures quick and accurate measurements, making it ideal for research and clinical settings, enhancing cell analysis efficiency with reliable, reproducible results for various applications.

For research Use Only. Not for use in diagnostic procedures.

  • Overview

    Improve downstream results with better quality control.

    Moxi Z is the only automated cell counter that combines the Coulter Principle typically used in high-end cell counters with a patented thin-film sensor technology to allow for highly accurate (> 95%) and repeatable particle counting and sizing for a broad range of cell types – from mammalian cells to cells as small as wine yeast and more. Since today’s workflows demand accurate quality control of samples, determining cell counts precisely has a significant impact on outcomes and downstream costs.

    Produce repeatable, precise cell counting with >95% accuracy in just 8 seconds.

    This ultra-small instrument uses patented microfluidic thin-film cassettes that enable automatic load and measure operation. The resulting single cell volumetric measurements are completely technique-independent. It provides the ideal alternative to the tedious manual counting associated with cytometers, or the inaccurate results associated with image-based automated cell counters (typical accuracies of 75-80%).

    Assess cell culture health without reagents or dyes.

    Moxi Z also automatically reports a unique cell health assessment index – MPI (Moxi Population Index) – without the need for reagents or dyes.MPI is a ratio of the cell population of interest relative to the entire particle distribution in that sample, factoring in dead cells that have shrunken or broken apart as well as other debris and contaminants in the sample. For monodisperse mammalian cultures this is closely correlated to the overall health of the sample.In the case of mixed cell populations, it’s provides an assessment of the relative fraction of the largest sized population in the sample. Unlike staining-based viability methods that focus on the uptake by dead cells and do not account for contaminants and other debris, MPI provides insight on the primary population of interest (based on size) and its relationship to ALL other particles in the sample.

    Measure the smallest cells at very high concentrations.

    Using the new Type S cassette, you can now accurately measure the smallest cells of any automated cell counter (down to 3um average diameter) at concentrations of up to 2.5e+6/ml. This means the new Type S cassette can measure Yeast (including wine yeast) and non-spherical particles down to 14 fL in volume.

    Results in just 8 seconds
    • Ultra-small and ultra-easy to use (no manual counting, no focusing of any kind)
    • Complete, high-resolution cell size/count histogram
    • Handles “de-aggregation” and coincidence events
    • Post-processing/analysis of count distributions with user-adjustable regions/gates
    • Assess cell health (MPI) without the need for reagents like Trypan blue
  • Technical Specs

    Id

    MXZ001

    Included accessories

    Instrument only

    AC power type

    110 VAC

    Applications

    Cell Counting | Cell Size | Cell Health

    Average Cell Diameter Range

    4 – 25 microns Type M | 3 – 20 microns Type S

    Battery Type

    Rechargeable 3.7 V, 4400 mAh lithium ion

    Cassette types

    Type M | Type S

    CE Certification

    Yes

    Cell Particle Concentration Range

    3,000 – 500,000 cells/mL Type M | 3,000 – 1,750,000 cells/mL Type S

    Cell types tested

    HEK-293
    HeLa
    PC12
    CD3+T
    CHO-K1
    Cos-7
    HepG2
    Hybridoma
    Jurkat E6-1
    K562
    MCF7
    Mesenchymal SC
    Monocyte
    Mouse ESC
    NIH 3T3
    PBMC (cultured)
    Red Blood Cells (RBC)
    L5178y
    C. albicans (Yeast)
    S. cerevisiae Vin 13 (Yeast)
    S. cerevisiae X5 (Yeast)
    Wine Yeast (natural fermentaion)
    S.cerevisiae (Baker’s Yeast
    Safale US-05 Yeast

    Data output formats

    .csv format (Orflo MoxiChart or Microsoft Excel)

    In British units

    1.5 lbs

    Intended use statement

    For Research Use Only. Product is not for use in diagnostic procedures

    Measurable dynamic range

    4- 34 microns Type M
    3 -26 microns Type S

    Measurement time

    15 seconds Type S
    10 seconds Type M

    MPI cell health

    Yes

    Number of detection channels flow parameters

    1

    Overall dimensions

    7.6 L x 4.3 W x 2.8 H (in)

    Particle size detection method

    Impedimetric (Coulter Principle)

    Platform

    No

    Pre-programmed tests

    None

    Sample type

    Mammalian Cells|Large Yeast|Large Algae|Protozoa Type M
    Mammalian Cells|Most Yeast|Small Algae|Small Protozoa Type S

    Sample volume

    75 µL

    Supported connectivity

    USB on-the-go; PC or Mac compatible; requires Windows XP, Windows Vista, Windows 7, or Mac OS X operating system

    Useable cell volume

    34 – 20,580 fL Type M
    14 – 4,200 fL Type S

    Weight

    0.68 kg

  • How it works

    Electronic current is passed through a small hole (Cell Sensing Zone) in a thin-film membrane. Cells flow substantially single file through the CSZ causing momentary increases in measured voltage that are directly proportional to cell or particle volume. Thousands of cells are measured during a single test and the size of each cell is plotted and saved in histogram format. Total volumetric counts are determined by precisely measuring the volume of fluid being analysed.

    Insert cassette into Moxi Z.

    Pipette 75 μL sample into cassette. Touch Screen.

    Finished! Automatic, hands-free measurement in just 8 seconds.

    Note: Each cassette holds 2 tests. When Sample 1 is complete, simply re-insert other end of cassette into MoxiZ, and load Sample 2.

    Data

    Data For each measurement, a complete histogram is displayed as well as cell count, average cell size and Moxi Population Index. The raw waveform from the most recent cell count, containing each cell spike, is also stored on the Moxi Z and can be both viewed on the Moxi Z and uploaded to the PC for additional analysis. The Moxi Z also performs sophisticated curve fitting analysis to more accurately determine cell counts in the event of overlapping populations of cells (or debris), significantly improving the accuracy of the volumetric counts produced by the Moxi Z. Data for 500 samples may be stored on the unit. All data can be transferred to a PC/Mac via Bluetooth. No special software is required for the PC since date files are Excel®-compatible. Sophisticated PC/Mac compatible analys software is included with each Moxi Z. Cell health may be assessed by comparing differences in histograms from culture to culture.

    Instructional Videos
  • Applications

    Blood Cells

    Monitoring Cell Health

    Algal Growth

    Yeast Monitoring
