AMI
Vapor Series

Surface Area and Pore Size Analyser

Simultaneously perform vapor adsorption, specific surface area.
Analyse up to 2 samples at once (1 vapor, 1 micropore).
Configurable with 1 or 2 analysis stations to meet varying lab needs.

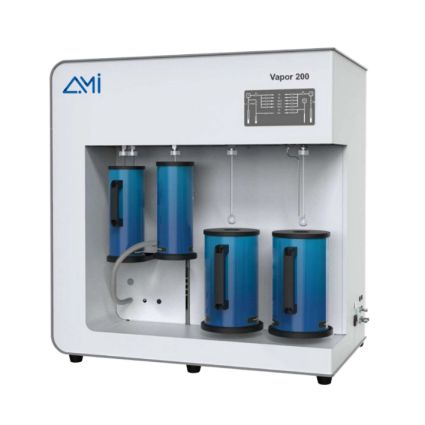

Gas Adsorption Gas Separation Vapor Series ● Simultaneously perform vapor adsorption, specific surface area. ● Analyze up to 2 samples at once (1 vapor, 1 micropore). ● Configurable with 1 or 2 analysis stations to meet varying lab needs.

The AMI Vapor Series instruments are precision volumetric analysers designed for advanced vapor and gas sorption characterisation. These systems are ideal for analysing adsorption isotherms, surface area, pore size distributions, and gas selectivity, using noncorrosive and safe adsorbates under controlled conditions.

Typical adsorbates include water vapor, benzene, carbon monoxide, ammonia, and other non-corrosive gases and vapors at room temperature.

Key Features

KEY FUNCTIONS

Vapor Adsorption Isotherms: Evaluate adsorption behavior over a range of relative pressures for various vapor species.

Gas Selectivity & Capacity: Determine selective adsorption characteristics and quantify sorption capacity.

Surface Area & Pore Size Distribution: Low-temperature nitrogen adsorption method for BET and BJH analysis.

Automated Vapor Generation and Delivery

Fully Automated Vapor Source Module:
Eliminates manual handling. Ensures high-purity vapor via software-controlled delivery.
Vapor Source Thermostatic Control:
Integrated water bath under software control for consistent vapor temperature and stability.

Advanced Analysis Capabilities

Fully Automated Vapor Source Module:
High-precision pressure transducers (10, 100, 1000 torr) for accurate measurements across a wide pressure range
High-vacuum corrosion-resistant solenoid valves.
Comprehensive software automation for sorption analysis and reporting.

Precision Vacuum Control

Ultra-High Vacuum System:
Includes a turbo molecular pump to achieve pressures down to 10^-7–10^-8 Pa, optimizing desorption and system cleanliness.
Cold Trap System (Dual Stage):
Standard dual cold traps minimize vapor back streaming and protect the vacuum pump, extending system longevity.

Thermal Stability and Sample Conditioning

Thermostated Analysis System: Built with corrosion-resistant materials
heated pathways to avoid condensation. Temperature range: ambient to 50°C.
Sample Temperature Control Options:
Dewar Flask: 77 K (liquid nitrogen)
Water Bath (Optional): -10°C to 95°C
CryoTune Cold Bath (Optional):
Adjustable ranges
82–135 K
120–170 K
180–323 K

1 – Cold Trap
2 – Pre-Treatment Station
3 – P₀ Tube
4 – Analysis Port
5 – Dewar
6 – Vapor Source
7 – Heating Socket

Specifications

Specific Model	Vapor 100B	Vapor 200B	Vapor 200C

Analysis Ports	1 Vapor Sorption Port	1 Vapor Sorption Port; 1 Gas Sorption Port	1 Vapor Sorption Port; 1 Gas Sorption Port
P0 Transducer	1	1	1
Analysis Pressure Transducer	3	4	6
Vapor Sorption Port	1000 torr, 100 torr, 10 torr	1000 torr, 100 torr, 10 torr	1000 torr, 100 torr, 10 torr
Gas Sorption Port	N/A	1000 torr	1000 torr, 10 torr, 1(0.1) torr
Pump	1 mechanical pump (ultimate vacuum 10^-2 Pa) (1 extra mechanical pump for degassing ports is optional)	1 mechanical pump (ultimate vacuum 10^-2 Pa); 1 Turbo molecular pump (ultimate vacuum 10^-8 Pa)	1 mechanical pump (ultimate vacuum 10^-2 Pa); 1 Turbo molecular pump (ultimate vacuum 10^-8 Pa)
P/P₀	10^-4 – 0.998	10^-8 – 0.998	10^-8 – 0.998
Specific Surface Area	N₂: 0.05 m²/g to upper limit; Kr: 0.0005 m²/g to upper limit.
Pore Size	0.35–500 nm, test repeatability: ≤ 0.2 nm	0.35–500 nm, test repeatability: ≤ 0.02 nm	0.35–500 nm, test repeatability: ≤ 0.02 nm
Pore Volume	≥ 0.0001 cm³/g
Degassing Ports	1 in-situ; 1 ex-situ	2 in-situ	2 in-situ
Adsorbates	Gas: N₂, CO₂, Ar, Kr, H₂, O₂, CO, CH₄, etc. Vapor: H₂O, Benzene, Olefins, etc.
Cold Trap	2
Volume and Weight	L 35.5 in (900 mm) × W 22.5 in (570 mm) × H 36.5 in (920 mm), 210 lbs (95 kg)
Power Requirements	110 V or 200–240 VAC, 50/60 Hz, maximum power 300 W
