Horiba Scientific

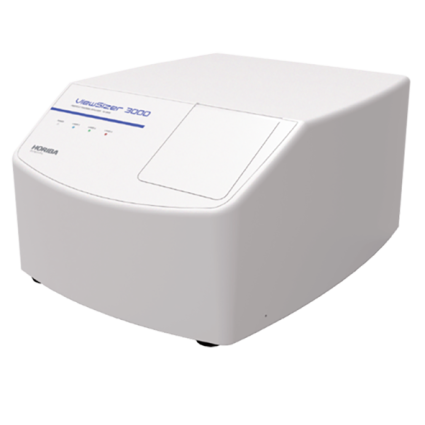

ViewSizer 3000
Simultaneous Multi-Laser Nanoparticle Tracking Analysis (NTA)
- Measurement range 10 nm – 15 µm
- Concentration Measurement Range: 1E5 to 1E9 particles/mL
- No cross-contamination
Applications
Vaccine Manufacturing
Infectious Titer
Emulsion Polymerisation
Whiskey
Powder Metallurgy
Protein Aggregation
Exosomes
Protein Therapeutics
Drinking Water
Extracellular Vesicles
Features
The ViewSizer 3000 uses the latest advances in nanoparticle tracking analysis (NTA) to accurately determine particle properties!
Size Measurement Range: 10 nm to 15 microns depending on sample
The ViewSizer determines particle size and size distribution details by multi-laser nanoparticle tracking analysis (NTA). Multiple lasers enable analysis of a broad range of sizes in the same sample.Concentration Measurement Range: 1E5 to 1E9 particles/mL
NTA can be used to count particles in the measurement volume. A patented method corrects for the effect of particle size on effective measurement volume.No cross-contamination
The sample cell can be completely removed and dissassembled for complete cleaning. Disassembly, cleaning, and reassembly is faster than rinsing a flow cell. Furthermore, multiple cells can be used for faster throughput or assigned to various groups in a shared (core) facility.Featured Publications for the ViewSizer 3000:
| A lipase-independent pathway of lipid release and immune modulation by adipocytes | https://science.sciencemag.org/content/363/6430/989 |
| Application of a novel new multispectral nanoparticle tracking technique | https://iopscience.iop.org/article/10.1088/1361-6501/aab940/meta |
| Biophysical characterization of polydisperse liposomal adjuvant formulations | https://doi.org/10.1016/j.bbrc.2020.05.156 |
| Characterisation of particles in solution – a perspective on light scattering and comparative technologies | https://doi.org/10.1080/14686996.2018.1517587 |
| Cyclodextrin Reduces Intravenous Toxicity of a Model Compound | https://doi.org/10.1016/j.xphs.2019.01.004 |
| Development and anti-Candida evaluation of the vaginal delivery system of … nanosuspension-loaded thermogel | https://doi.org/10.1080/1061186X.2018.1434660 |
| Electrochemical sensor based on F,N-doped carbon dots decorated laccase for detection of catechol | https://doi.org/10.1016/j.jelechem.2019.03.071 |
| Light scattering by pure water and seawater: the depolarization ratio and its variation with salinity | https://doi.org/10.1364/AO.58.000991 |
| Lipid Nanoparticle-Delivered Chemically Modified mRNA Restores Chloride Secretion in Cystic Fibrosis | https://doi.org/10.1016/j.ymthe.2018.05.014 |
| Mesenchymal Stromal Cell Bioreactor for Ex Vivo Reprogramming of Human Immune Cells | https://doi.org/10.1038/s41598-020-67039-w |
| Multifunctional Nanocomposites Based on Liposomes and Layered Double Hydroxides Conjugated with Glycylsarcosine for Efficient Topical Drug Delivery to the Posterior Segment of the Eye | https://doi.org/10.1021/acs.molpharmaceut.8b01136 |
| Particle size analysis of polydisperse liposome formulations with a novel multispectral advanced nanoparticle tracking technology | https://doi.org/10.1016/j.ijpharm.2019.06.013 |
| Review of nanoparticles in ultrapure water: definitions and current metrologies for detection and control | https://www.ovivowater.com/review-of-nanoparticles-in-ultrapure-water-definitions-and-current-metrologies-for-detection-and-control/ |
| Spark erosion as a high-throughput method for producing bimodal nanostructured 316L stainless steel powder | https://doi.org/10.1016/j.powtec.2018.01.012 |
| Synthesis and Characterization of EGFR-Targeted Immunoporphysomes | http://hdl.handle.net/1807/89548 |
| Synthesis of Ultrasmall Synthetic Melanin Nanoparticles by UV Irradiation in Acidic and Neutral Conditions | https://pubs.acs.org/doi/abs/10.1021/acsabm.9b00747 |
| Nanoparticle Tracking Analysis for the Quantification and Size Determination of Extracellular Vesicles | Protocol (jove.com) | https://doi.org/10.3791/62447 |
| Isolation and characterization of EV in Saliva of Children with Asthma | https://evcna.com/article/view/3962 |
| Spinal cord injury alters microRNA and CD81+ exosome levels in plasma extracellular nanoparticles with neuroinflammatory potential | https://doi.org/10.1016/j.bbi.2020.12.007 |
| Skeletal muscle tissue secretes more extracellular vesicles than white adipose tissue and myofibers are a major source ex vivo but not in vivo | https://doi.org/10.1101/2020.09.27.313932 |
| Human milk extracellular vesicle miRNA expression and associations with maternal characteristics in a population-based cohort from the Faroe Islands | https://www.nature.com/articles/s41598-021-84809-2 |
| Purification of Cas9 – RNA Complexes by Ultrafiltration | https://doi.org/10.1002/btpr.3104 |
| Assessment of Surface Glycan Diversity on Extracellular Vesicles by Lectin Microarray and Glycoengineering Strategies for Drug Delivery Applications | https://doi.org/10.1002/smtd.202100785 |
| Bioactive extracellular vesicles from a subset of endothelial progenitor cells rescue retinal ischemia and neurodegeneration | https://doi.org/10.1172/jci.insight.155928 |
| Circulating Extracellular Vesicles From Septic Mice Induce Brain Inflammation via Mirna Cargo | http://hdl.handle.net/10713/19055 |
Specifications
|
Measurement Range
|
10 nm to 15 μm |
|
Typical Sample Volume
|
350 µL to 2.5 mL |
|
Typical Sample Concentration
(Sample dependent) |
10^5 – 10^9 particles/mL/p> |
|
Sample Temperature Range
(Controlled) |
10° C to 50° C +/- 0.1° C |
|
Dimensions
|
55 cm W x 66 cm D x 35 cm H |
|
Weight
|
27 kg |
|
Operational Environment
|
15° C to 30° C with < 85% RH |
